Unique SSSV

Alfa Laval Unique Small Single Seat Valves (SSSVs) are fast-acting pneumatic valves that handle dosing and small flow rates in hygienic applications. Modular and cost-effective, you can easily configure valve bodies, plugs and actuators to meet your requirements for shutoff or diversion. These durable, easy-to-clean seat valves come in ½” and ¾” versions.

Cost-effective hygiene for small flows

Compact, fast-acting hygienic shutoff or changeover valve
Low total cost of ownership
Exceptional valve hygiene and cleanability
Ideal for dosing and small flow rates
Long-lasting, modular design

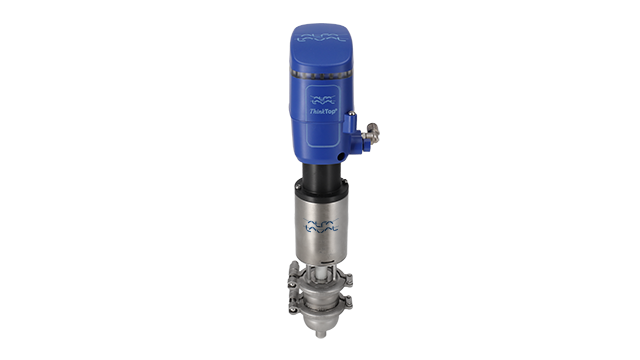

Safe and economical seat valve The Alfa Laval Unique SSSV is perfect for handling dosing and small flow rates that require straightforward shutoff and changeover in hygienic applications. Its space-saving footprint, robust plug design and durable seal make the Unique SSSV ideal for processes that require easy-to-configure, easy-to-operate and easy-to-clean valves. Available with valve sensing and control unit.

Exceptional valve hygiene

Minimize the risk of contamination with the unmatched hygiene of the Alfa Laval Unique SSSV. To safeguard your processes, this small, food-grade single seat valve – like all valves in the Alfa Laval SSV range – has a weld-free body, easy-to-clean plug and double-acting lip seal. Engineered for the dairy, food and beverage and personal care industries, the Unique SSSV is EHEDG-certified, authorized to carry the 3-A symbol and provides full traceability in compliance with the EU Food Regulation 1935/2004.

Cost effective SSSV Valve

Reduce maintenance costs due to the straightforward, hygienic design of the Unique SSSV. Few moving parts and crevice-free surfaces prolong the intervals between Cleaning-in-Place (CIP). A single contact surface between the plug and the seat minimizes the risk of contamination.

Demand hygiene and safety for small flows

Discover how Alfa Laval Unique SSSV small single seat valves will help you raise the standards of hygiene, process safety and durability while lowering the total cost of ownership.

Extend valve service life

Get more uptime due to the high sealing quality and significantly reduced wear of plug, seat and seal on the Alfa Laval Unique SSSV.

Part of a broad valve range

Alfa Laval SSSVs, available in ½” and ¾” sizes, are part of Alfa Laval’s comprehensive range of valves for hygienic applications in various industries including dairy, food, beverage, home care, personal care, biotechnology and pharmaceuticals.

Explore the full range here

For a broader valve range, explore the different product categories: ball valves, butterfly valves, control/check valves, diaphragm valves, double seal valves, double seat valves, mixproof valves, regulating valves, safety valves, sample valves and shutter valves.

How it works

Operating principle

The Alfa Laval Unique SSSV small single-seat valve is an air-operated seat valve that is remotely operated by means of compressed air or manually operated. It is a small version of the well-known Alfa Laval Unique SSV with a straightforward design and few moving parts.

Construction

The Alfa Laval Unique SSSV range consists of one or two valve bodies, each with two to five ports, plug in PVDF (no elastomer), static sealing, actuator and clamp ring.

Options

Adapter for Alfa Laval IndiTop, ThinkTop and ThinkTop Basic
Control and Indication: Alfa Laval IndiTop, ThinkTop or ThinkTop Basic
Product wetted seals of HNBR or FPM
Stainless steel seal disc replacing standard lip seal
Clamp with wing nut
Clamp connection

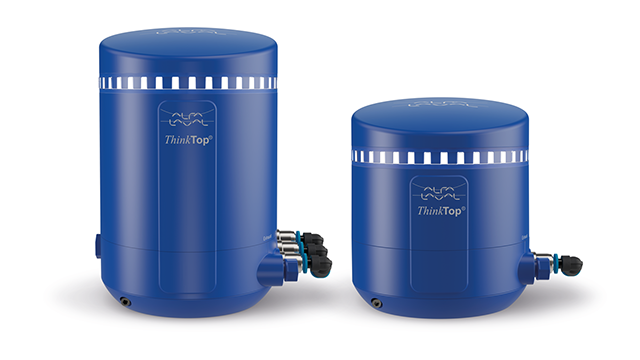

Save water with ThinkTop

Do something good for the environment and save up to 95% in CIP liquid when cleaning your valves. Innovations like ThinkTop sensing and control units make more efficient use of resources while safeguarding process hygiene. Add ThinkTop to your valves to optimize your processes.

Save water with ThinkTop

360° Service and maintenance videos

Alfa Laval Unique single seat valves - maintainable actuator

Alfa Laval Unique single seat valves – replace actuator bushing

Alfa Laval Unique single seat valves -replace product-wetted seals

Alfa Laval Unique single seat valves – product-wetted seals

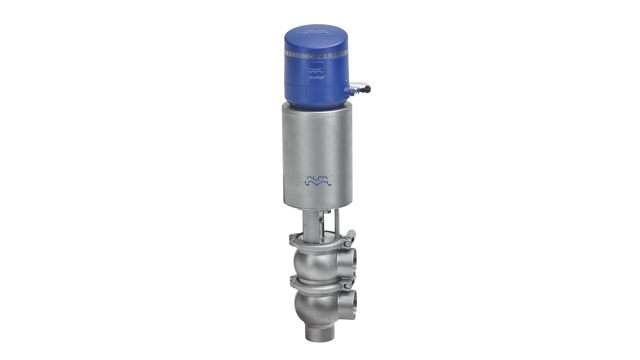

Unique SSV
